Motorola Edge 60 Fusion ISP Pinout – Complete Guide for Dead Boot Repair (XT2503)
Focus Keyword: Motorola Edge 60 Fusion ISP Pinout Meta Description: Complete guide to Motorola Edge 60 Fusion (XT2503) ISP pinout, UFS test points, required tools, and dead boot repair steps. Accurate info for professional technicians.
What Is ISP Pinout?
ISP stands for In-System Programming. It is an advanced hardware-level repair technique used by professional mobile technicians to directly communicate with the storage memory chip (UFS/eMMC) on a phone's motherboard — completely bypassing the processor.When a phone is 100% dead and cannot be detected by any software tool — including Fastboot, EDL, or BROM mode — ISP is often the last hardware resort before the device is declared unrepairable.
The technician identifies specific test points on the motherboard that carry memory bus signals, then connects those points directly to a compatible programmer box to read, write, or restore the device's firmware and bootloader.
Warning: ISP is an expert-level, chip-level repair procedure. It requires micro-soldering skills, proper equipment, and professional training. Attempting it without experience can permanently destroy the device.
Motorola Edge 60 Fusion – Full Specifications
Before performing any hardware-level repair, knowing your exact device specifications is critical.| Specification | Details |
|---|---|
| Model Number | XT2503-4 |
| Released | April 2025 |
| Chipset (Global) | MediaTek Dimensity 7300 (MT6878V), 4nm |
| Chipset (India/Indonesia) | MediaTek Dimensity 7400, 4nm |
| CPU | Octa-core: 4×2.5GHz Cortex-A78 + 4×2.0GHz Cortex-A55 |
| GPU | Mali-G615 MC2 |
| RAM | 8GB / 12GB |
| Internal Storage | 128GB / 256GB / 512GB |
| Storage Type |  UFS (Universal Flash Storage) |
| Expandable Storage | Yes – microSDXC |
| OS | Android 15 |
UFS vs eMMC – Critical Difference Every Technician Must Know
This is the most common mistake in online repair communities. Many posts incorrectly label the Motorola Edge 60 Fusion as having an eMMC chip. This is factually wrong.| Feature | eMMC | UFS |
|---|---|---|
| Interface | MMC parallel bus | MIPI M-PHY serial lanes |
| Speed | Up to ~400 MB/s | Up to ~2100 MB/s |
| Signal Lines | CLK, CMD, DAT0–DAT7, VCC, VCCQ | TX+/TX−, RX+/RX−, REF_CLK, VCC, VCCQ |
| Found In | Budget/older phones | Mid-range & flagship phones |
| Edge 60 Fusion |  No | Yes |
ISP Pinout Signal Lines Explained
For UFS-based devices like the Motorola Edge 60 Fusion, the key signals required for ISP communication are:| Signal | Function |
|---|---|
| TX+ / TX− | Differential transmit lines – data from host to UFS chip |
| RX+ / RX− | Differential receive lines – data from UFS chip to host |
| REF_CLK | Reference clock for UFS PHY synchronization |
| VCC | Main power supply for the UFS chip (typically 2.9V) |
| VCCQ | I/O voltage for UFS chip logic (typically 1.2V) |
| GND | Ground reference |
Required Tools for ISP Repair
Hardware Tools
Software Tools
When Is ISP Pinout Needed?
ISP is never the first step. Always follow this repair escalation order:Step 1 → Try Fastboot Mode (Power + Volume Down)
↓ Not detected?
Step 2 → Try Recovery Mode
↓ Not detected?
Step 3 → Try MediaTek BROM Mode via USB
↓ Not detected?
Step 4 → Diagnose with DC Power Supply
↓ Hardware fault suspected?
Step 5 → ISP / Direct UFS Test Point ← You Are Here
↓ UFS chip damaged?
Step 6 → UFS Chip-Off / NAND Replacement (highest risk, last resort)
Common Situations That Require ISP on Motorola Edge 60 Fusion:
- Completely dead phone – no response to any mode
- Bootloader brick after a bad or incomplete firmware flash
- FRP bypass via hardware when all software methods have failed
- IMEI / EFS restoration after incorrect repair
- Firmware restoration when EDL and BROM modes are inaccessible
- CPU dry solder issue – Note: ISP alone cannot fix a physical hardware connection fault. CPU reballing is required first.
Step-by-Step Dead Boot Repair Process
Step 1 – Diagnose with DC Power Supply
Connect battery terminals to a regulated DC supply at 3.85V and observe the current draw:Step 2 – Attempt All Software Recovery Methods First
- Fastboot Mode: Hold Power + Volume Down (10–15 seconds)
- Recovery Mode: Device-specific key combination
- BROM Mode: Some Motorola MTK devices have a BROM test point to short during boot
- Software Flash: Try TSM Tool Pro or SP Flash Tool via USB
Step 3 – Open Device and Prepare Motherboard
If all software methods fail:- Power off and remove the battery
- Open the device carefully with appropriate plastic pry tools
- Disconnect all flex cables, display connector, and battery
- Remove the motherboard
- Clean the board with 99% IPA (isopropyl alcohol) if corrosion is present

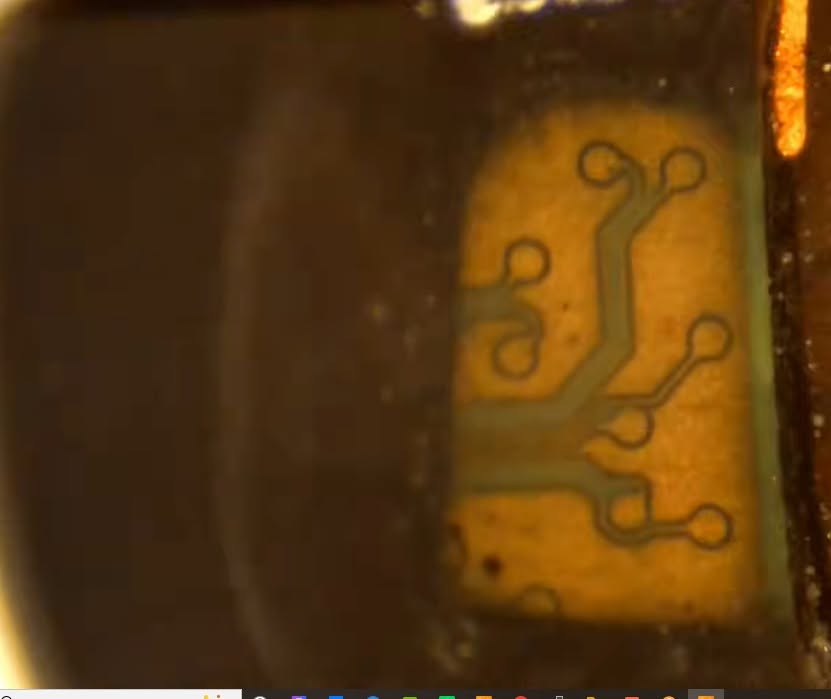

Step 4 – Locate UFS Test Points
Source the verified XT2503 schematic from your tool's built-in database (EasyJTAG Suite, UFI Shell) or a professional schematic viewer (Borneo Schematic, ZXW Dongle).Use a digital microscope at minimum 7× magnification to clearly identify the UFS test point pads on the PCB.
Never guess test point locations from unverified images. Always use a verified schematic database.
Step 5 – Solder ISP Wires
- Cut fine copper wires (28–30 AWG)
- Apply a very small amount of flux to each test point pad
- Solder one wire per signal line — TX+, TX−, RX+, RX−, REF_CLK, VCC, VCCQ, GND
- Secure wires with Kapton tape to prevent shorts
- Inspect all joints under the microscope before proceeding
Step 6 – Connect to Programmer and Detect Chip
- Connect wires to the appropriate UFS ISP port on your programmer
- Open the programmer software and select MediaTek UFS interface
- Power the board using the DC supply (do NOT use battery during ISP)
- Click "Read/Detect" — the tool should identify the UFS chip model and size
Step 7 – Restore Firmware
- Always read and backup the chip first before writing anything
- Load the correct official XT2503 firmware dump
- Write the firmware to the device
- After successful write, disconnect all ISP wires safely
- Reassemble the device and test boot
